NEXUS PDLC S-Guardlite

Nexus PDLC (Polymer Dispersed Liquid Crystal) technology converts transparent glass into a fully opaque privacy screen — and back — with the flick of a switch. It integrates directly into laminated glass or is available as a retrofit adhesive film.
Applications:

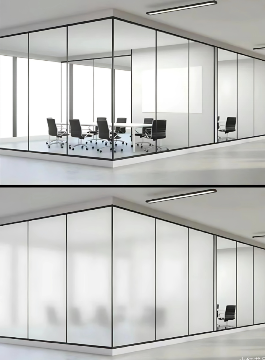

Commercial partitions and boardrooms
Bathrooms and spa glass dividers
Healthcare, cleanrooms, and hospitality
Yield Rate: 99%+, minimal waste
Luxury residential facades and interiors

The Industry
Challenge – Common
PDLC Limitations

Why Traditional PDLC Fails in Real-World Projects

While PDLC is widely adopted, many films in the market fail to
meet project demands:

Yellowing or hazing over time due to UV instability
Delamination or bubbles in high humidity environments
Uneven switching and poor optical clarity
High power consumption and limited integration options
Lack of technical support and certification

Nexus Advantage – Performance
You Can See

Feature	NSI
Switching Speed	0.2s (on) / 0.5s (off)
Light Transmission (on)	≥85%
Haze (off)	<1%
Operating Voltage	60–70V AC
Power Consumption	<5W/m²
Durability	>5 years (UV, moisture, adhesive tested)
Operating Temperatures	-10°C to 60°C
Format	Stick-on film / Laminated PDLC glass

Solving Every Pain
Point in PDLC
Applications

Challenge	Nexus Solution
Yellowing over time	UV-resistant PDLC formulation
Moisture and delamination	Precision lamination with advanced interlayer
Uneven switching	High-speed, uniform dispersion control
Power inefficiency	Low-power circuit design, <5W/m²
Poor technical support	Backed by in-house tech & architectural guidance

NEXUS PDLC S-Guardlite

Nexus SMART FILM GOSHENITE (CLEAR)

Specification	Details
LF-P-WT-N	Laminated, self-adhesive film, white, normal characteristics
Dimensions	1000mm Width x 1000mm Length, MAX Width ≤1840mm
Light Transmittance	OFF: 3%±1%, ON: 85%±1%
Total Transmittance	OFF: 65%±1%, ON: 82%/88% (High Transmittance)
Haze	OFF: <3%±1%, ON: >95%±1%
Switching Time	ON: 200ms, OFF: 220ms
Operating Modes	ON/OFF/DIM
Operating Voltage	AC60V
Power Consumption	ON: Avg. 4–6W/m²
Temperature Range	-20°C to +110°C
IR Block	85%
UV Block	99%
Viewing Angle (ON)	160°±1%
Length Tolerance	+0.5/-0 meter, ±0/+2m
Width Tolerance	+5/-0mm, ±0/+2m

Nexus SMART FILM GRAPHITE (GREY)

Specification	Details
LF-P-WT-NX	Laminated, self-adhesive film, white, extra high transmittance
Dimensions	1000mm Width x 1000mm Length, MAX Width ≤1840mm
Light Transmittance	OFF: 3%±1%, ON: 90%±1%
Total Transmittance	OFF: 65%±1%, ON: 90%±1% (Extra High Transmittance)
Haze	OFF: <4%±1%, ON: >95%±1%
Switching Time	ON: 200ms, OFF: 220ms
Operating Modes	ON/OFF/DIM
Operating Voltage	AC60V
Power Consumption	ON: Avg. 4–6W/m²
Temperature Range	-20°C to +110°C
IR Block	85%
UV Block	99%
Viewing Angle (ON)	160°±1%
Length Tolerance	+0.5/-0 meter, ±0/+2m
Width Tolerance	+5/-0mm, ±0/+2m

Nexus SMART FILM DIAMOND (ULTRA CLEAR)

Specification	Details
LF-P-WT-S	Laminated, self-adhesive film, white, high privacy
Dimensions	1000mm Width x 1000mm Length, MAX Width ≤1840mm
Light Transmittance	OFF: 2%±1%, ON: 85%±1%
Total Transmittance	OFF: 65%±1%, ON: 82%/92% (High Transmittance)
Haze	OFF: <3%±1%, ON: >95%±1%
Switching Time	ON: 200ms, OFF: 220ms
Operating Modes	ON/OFF/DIM
Operating Voltage	AC60V
Power Consumption	ON: Avg. 4–6W/m²
Temperature Range	-20°C to +110°C
IR Block	85%
UV Block	99%
Viewing Angle (ON)	160°±1%
Length Tolerance	+0.5/-0 meter, ±0/+2m
Width Tolerance	+5/-0mm, ±0/+2m

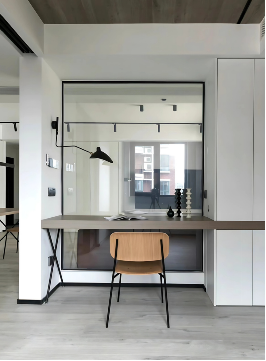

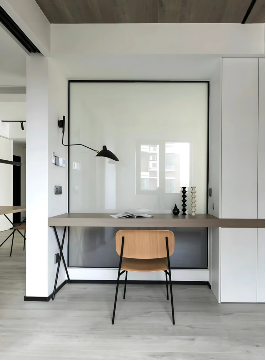

From Clear to Private in
a Second.

NEXUS PDLC S-Guardlite

The Industry
Challenge – Common
PDLC Limitations

Nexus Advantage – Performance
You Can See

Solving Every Pain
Point in PDLC
Applications

NEXUS PDLC S-Guardlite

Nexus SMART FILM GOSHENITE (CLEAR)

Nexus SMART FILM GRAPHITE (GREY)

Nexus SMART FILM DIAMOND (ULTRA CLEAR)

Versatile in Use.
Trusted in System Design

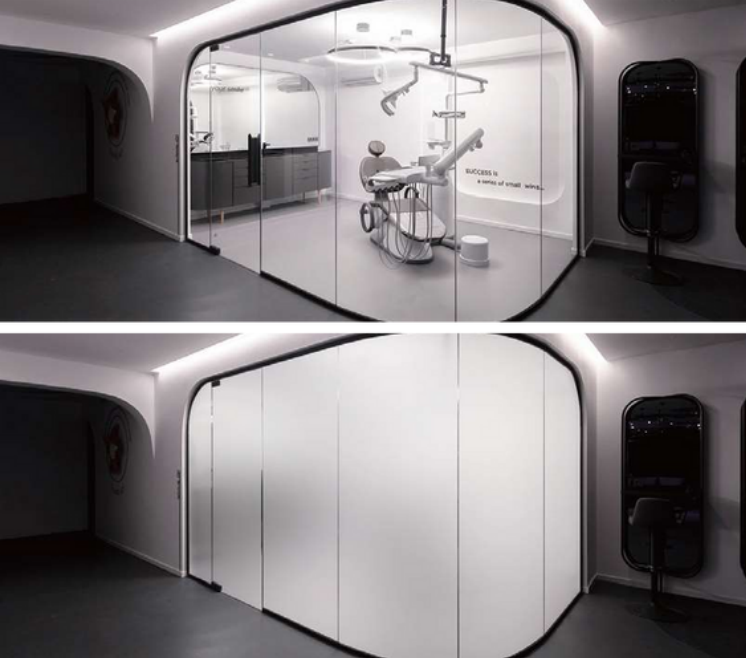

Hospital

Versatile in Use.
Trusted in System Design

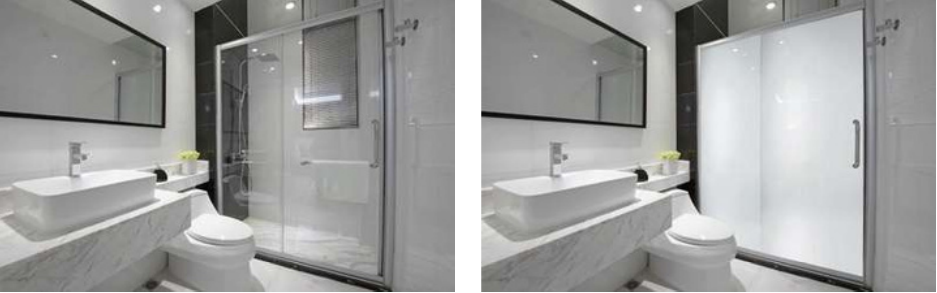

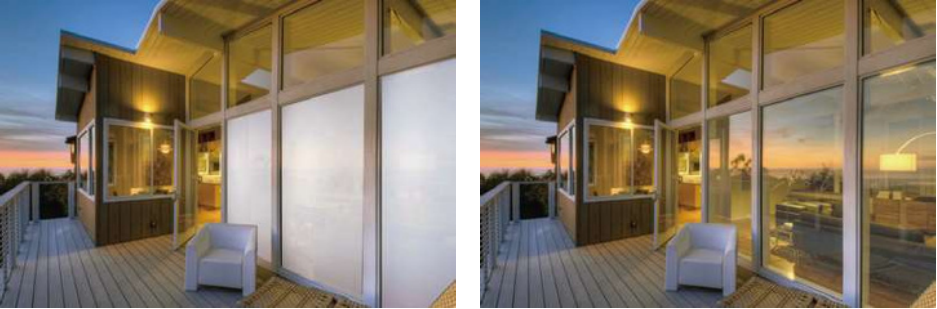

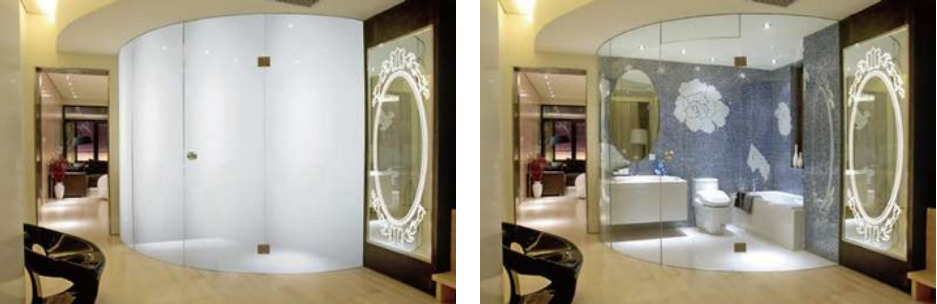

Hotel

Versatile in Use.
Trusted in System Design

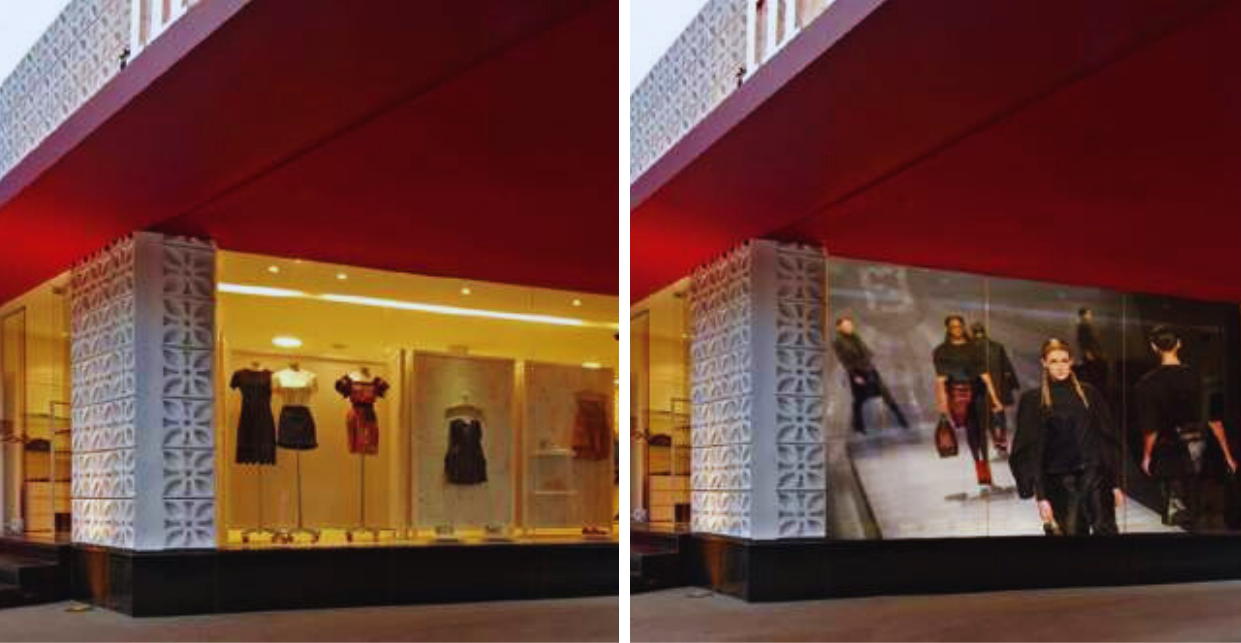

Store
